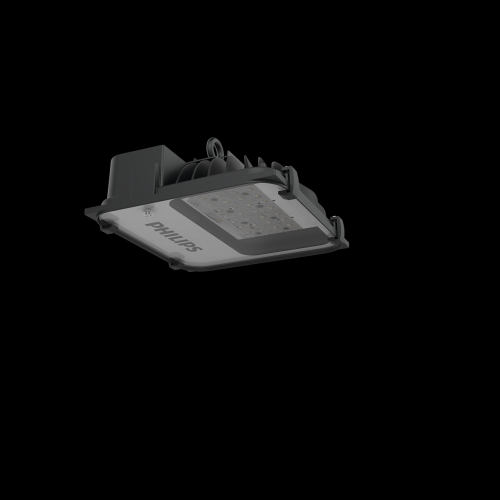

Durabay Prime Highbay

More Views

Durabay Prime Highbay

Be the first to review this product

Superior Light quality comes at lower energy and maintenance cost


Energy Savings:
− Best in class luminous efficacy of 130lm/W
− 70% energy saving compared to conventional HID system; 1:1
replacement for 250W HPI BU Lamp
− THD<10% results in higher power factor, lower peak currents
and higher efficiency
• Robust and Reliable
− Aluminum die-cast housing with unique fin design provides
excellent thermal management and corrosion resistance
− Wide operating voltage range of 140-270V with high voltage
cutoff at 320V and auto restart feature
− 8 hrs. protection for phase to phase 440V; 4kV surge protection
− IP66 rated to protect from ingress of dust, solid object and
moisture; IK08 rated to protect from external impact
− Long Life of 50,000 hrs. @L70B50



Applications
• Warehouse Sheds
• Low Ceiling Hangers (8-10m
height)
• Low Ceiling Applications
• Storage Areas
• Garages
• Small Manufacturing
facilities

Availability: In stock

Rs 2,500.00
Price will be negotiable in bulk order
With the successful introduction of the Durabay Family, Philips achieved a breakthrough in high-bay lighting, providing the superior light quality, long service lifetime, reduced energy consumption and less maintenance in the switch on-off (PSU) and Dali dimmable (PSD) versions. Now, with Durabay Prime, Philips continues to improve even further: an improved total cost of ownership, seamlessly integrates state-of-the-art LED lighting with higher efficacy and excellent thermal stability.Durabay Prime delivers a uniform light distribution with a Wide beam and Narrow beam optics that provides outstanding illuminances in industrial and retail environments. It is designed to replace HPI BU 250W/400W, offering up to 70% of energy savings, whilst delivering long lifetime, in often hard to reach maintenance areas. cision Optics: Professional Lens structure to realize accurate light distribution improving uniformity and lighting level in space while minimizing glare to the occupants • Versatile: Available in two lumen packages and two beam options (Narrow and wide beam) to suit different application requirements • Ease of installation: − Suited for eyebolt mounting − Compact form factor makes this product smaller, lighter and easy to handle • Superior light Quality: • SDCM<5 ensures color consistency • CRI≥80 superior color rendering Conventional Comparison HPI BU 250W BY225P Lamp Wattage 250W NA System Wattage 277W 80W Lamp Lumen Output 18000lm NA Light Output Ratio (LOR) 60% 100% System Lumen Output 10800 10500 Total Energy Saving (almost same lux level ~195W per point) >70% Downward Light Output Ratio (DLOR) = Optical efficiency of the conventional luminaire in throwing the light downward compared to the lumens generated by the lamp inside the optical chamber. Note: For retrofit in existing plants, please validate the present lux level and decide the most optimum offering from Durabay Prime Family
Specifications Type BY225P System Lumen 10500 lm 14000lm System Power 80W 105W System efficacy 130 lm/W CCT 6500K (cool white) CRI CRI ≥ 80 Color consistency SDCM< 5 Beam options NB (60⁰), WB(110⁰) IP rating IP66 IK rating IK08 Electrical Classification Class I Power factor ≥ 0.95 Input Voltage 140-270V, 50Hz Surge L,N-GND 4KV THD <10% Driver Fixed; DALI (option) Operating Temperature -10⁰C to 45⁰C Lifetime L70B50(hrs.) 50,000hrs@Ta45⁰C Serviceability Class B (driver replaceable) Material Housing: Aluminum Die-casting; Cover: Tempered glass of high transmittance; Lens: PC Dimensions (LXWXH) 270mm X 282mm X 156mm Mounting Eyebolt Weight 4 kgs How to read Cat. Ref. 1 Product family code 2 System output LED100S: 10500 lm 3 Color temperature CW: 6500K 4 Optics NB: Narrow Beam 60⁰ / WB: Wide beam 110⁰ 5 Controls PSU: Fixed 6 Front Cover FG: Toughened Extra clear glass 7 Luminaire Color GR: Grey Color 8 Variant V1: Version 1 Ordering Data 12 NC Description Spare Driver 12NC 919515812901 BY225P LED100S CW NB PSU FG GR V1 929001478306 919515812902 BY225P LED100S CW WB PSU FG GR V1 929001478306 919515813031 BY225P LED135S CW NB PSU FG GR V1 929001478606 919515813032 BY225P LED135S CW WB PSU FG GR V1 929001478606
