Green Perform Elite Highbay

More Views

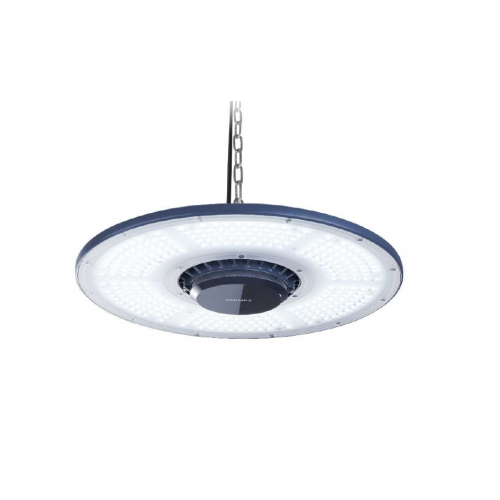

Green Perform Elite Highbay

Be the first to review this product

Elegant industrial design with fantastic light quality, superior efficiency and long-term reliability.


Why this product?
Green perform Elite
High-bay market is booming
• Huge quantity growth expected
• Many competitors on the market
• Differentiator product needed
Future proof
• Product readiness for sensor integration
• Provision for Interact drivers
• Excellent quality and lifetime









Why this product?
Green perform Elite
High-bay market is booming
• Huge quantity growth expected
• Many competitors on the market
• Differentiator product needed
Future proof
• Product readiness for sensor integration
• Provision for Interact drivers
• Excellent quality and lifetime
Increase application fit
• High lumen output required for high ceiling
• Multiple lumen packs required with various optics





High energy saving
Total Energy Saving (same lux level)
65% 100%
32000 lm 20000 lm
400 W 135W
440 W 135 W
20800 lm 20000 lm
65%
HPI P
400W
BY718P
LED200
Light Out Put Ratio ( LOR)
(Luminaire Optical design)
Initial lumen output
Lamp wattage
System wattage
System Lumen Output
65% 100%
18000 lm 10000 lm
250 W 68 W
275 W 68 W
11700 lm 10000 lm
71%
HPI P
250W
BY718P
LED100
Light Out Put Ratio ( LOR)
(Luminaire Optical design)
Initial lumen output
Lamp wattage
System wattage
System Lumen Output
Total Energy Saving

Availability: In stock

Rs 1,000.00
Price will be negotiable in bulk order
Green perform Elite is part of the High-bay family with a value that customers understand. Differentiators of the new Elite Highbay are: • Excellent efficacy and light output • Easy installation (single point suspension) • One-to-one replacement with conventional products • Wide application possibilities • Enhances Appeal Reasons to Believe • 10,000 / 15,000 / 20,000 / 25,000 / 30,000 lm output • 145 lm/W Efficacy • 4000/6500 K • CRI >80 at SDCM <3 • Robust: IP65 / IK08 • Life Class of 50,000 hrs. @ Ta 45⁰ C • PSU, PSD*, Interact Ready* • WB and NB optics • Hook Mounting • Finless aesthetics • Sleek design (easy to handle) Features and Benefits Outstanding Energy Efficiency • Incorporates extremely efficient, state-of-the-art LED technology • System efficiency >145 lm/W 75% energy savings versus conventional HID static light Top performer in any environment • Designed for operations under diverse environment from -30˚C to 50˚C • Lack of Lens Glare makes it gentle and comfortable to eye, while its light distribution is uniform, allowing you to achieve a consistency of illumination: CRI 80; UGR 22 (NB) UGR26 (WB). • Polycarbonate front cover makes this luminaire suitable for F & B industry Features and Benefits Enhances Appeal • Completely new finless aesthetics design • Owns iF design award 2019 & Reddot design award 2019 Robust Design • IK08 Polycarbonate cover provides strong protection from high pollution • Pressure die-cast housing offers excellent corrosion-resistance and robustness • Efficient heat dissipation assures long time at high temperature application Suitable to Versatile applications • Five lumen choices with two optics: Suitable for 10 to 30-meter height • Wide Beam (WB) brings high uniformity to the whole area • Narrow Beam (NB) delivers highly efficient light to make a brighter
Specifications Types (BY718P) LED100 LED150 LED200 LED250 LED300 Lumen Output (typ.) 10000lm 15000lm 20000lm 25000lm 30000lm System Power (typ.) 68W 102W 135W 169W 203W System efficacy Typ. 145lm/W CCT (typ.) CW (6500K)/ NW (4000K) CRI ≥ 80 Color consistency < 3 SDCM IP/IK rating IP65/ IK08 Classification Class I Operation Temperature -30⁰C to +50⁰C (Ta45⁰C) Lifetime (hrs) 50,000 hrs (Calculated L70B50) @45⁰C Optics WB (86⁰) ; NB (54⁰) Input Voltage 220-240V, 50/60 Hz Power factor 0.95 THD <15% Mounting / Installation Hook (included in the box) Housing Aluminum die-casting Dimensions (mm) Φ385/H95 Φ420/H95 Φ450/H95 Φ510/H90 Weight 3.3KGS 4.3KGS 4.7KGS 5.8KGS Certificate BIS/ROHS/LM7 Product designations BY325P BY718P BY415P Luminous flux 10/13/16.5/19 klm 10/15/20/25/30 klm 14.5/16.5/19.5/2 3/26/28.5 klm Efficacy Up to 130lm/w Up to 145 lm/w Up to 125 lm/w IP / IK rating IP66 / IK07 IP65 / IK08 IK65 / IK07 Driver options PSU/ PSD PSU/PSD (On demand) PSU/PSD System ready - Interact Pro (On demand)* - Optics NB/ WB NB/WB NB/WB Lifetime 50k hrs L70 50k hrs L70 50k hrs L70 Professional thermal design • Innovative thermal sink design, which is flat with slight inclination and thermal fins in the middle • High efficient thermal discerption creates an airflow through the product to prevent dirt from accumulating on the surface, suitable for installation at any angle • Stable operation between -30⁰C ~ +50⁰C , ensuring the durable and reliable performance at Ta 45⁰ C Product Dimension Type Diameter Height BY718 LED100 PSU 385mm 95mm BY718 LED150 PSU 420mm 95mm BY718 LED200 PSU 450mm 95mm BY718 LED250/300 PSU 510mm 90mm [15:05, 4/8/2020] Mamta: Ordering details 12NC Description Specification 9114 015 21161 BY718P LED100/CW PSU NB IN 68W, 10000lm, 6500K, fixed output, narrow beam 9114 015 21261 BY718P LED100/CW PSU WB IN 68W, 10000lm, 6500K, fixed output, wide beam 9114 015 21361 BY718P LED100/NW PSU NB IN 68W, 10000lm, 4000K, fixed output, narrow beam 9114 015 21461 BY718P LED100/NW PSU WB IN 68W, 10000lm, 4000K, fixed output, wide beam 9114 015 21561 BY718P LED150/CW PSU NB IN 102W, 15000lm, 6500K, fixed output, narrow beam 9114 015 21661 BY718P LED150/CW PSU WB IN 102W, 15000lm, 6500K, fixed output, wide beam 9114 015 21761 BY718P LED150/NW PSU NB IN 102W, 15000lm, 4000K, fixed output, narrow beam 9114 015 21861 BY718P LED150/NW PSU WB IN 102W, 15000lm, 4000K, fixed output, wide beam 9114 015 21961 BY718P LED200/CW PSU NB IN 135W, 20000lm, 6500K, fixed output, narrow beam 9114 015 22061 BY718P LED200/CW PSU WB IN 135W, 20000lm, 6500K, fixed output, wide beam 9114 015 22161 BY718P LED200/NW PSU NB IN 135W, 20000lm, 4000K, fixed output, narrow beam 9114 015 22261 BY718P LED200/NW PSU WB IN 135W, 20000lm, 4000K, fixed output, wide beam 9114 015 22361 BY718P LED250/CW PSU NB IN 169W, 25000lm, 6500K, fixed output, narrow beam 9114 015 22461 BY718P LED250/CW PSU WB IN 169W, 25000lm, 6500K, fixed output, wide beam 9114 015 22561 BY718P LED250/NW PSU NB IN 169W, 25000lm, 4000K, fixed output, narrow beam 9114 015 22661 BY718P LED250/NW PSU WB IN 169W, 25000lm, 4000K, fixed output, wide beam 9114 015 22761 BY718P LED300/CW PSU NB IN 203W, 30000lm, 6500K, fixed output, narrow beam 9114 015 22861 BY718P LED300/CW PSU WB IN 203W, 30000lm, 6500K, fixed output, wide beam 9114 015 22961 BY718P LED300/NW PSU NB IN 203W, 30000lm, 4000K, fixed output, narrow beam 9114 015 23061 BY718P LED300/NW PSU WB IN 203W, 30000lm, 4000K, fixed output, wide beam
