 Lux Space Pro

More Views

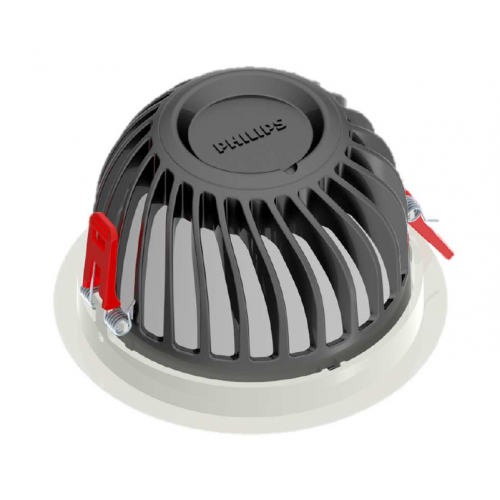

Lux Space Pro

Be the first to review this product

Features and benefits:
• Energy efficient – More than 120 lm/W
• Product diversity – 4 lumen packs, 4 CCTs, 2 different Beam Angles 360 &
600
, IP20 / IP54
• Excellent light quality – CRI 80, SDCM < 5, UGR ≤19*
• Reliable performance – Lifetime 50,000 hours L70B50 @ Ta 45°C
• System compatibility – DALI, POE, DALI-VLC, Interact Pro, Tunable white
available
*UGR is calculated for lighting system for standard height of installation

Availability: In stock

Rs 1,000.00
Price will be negotiable in bulk order
Design compactness for integration with ceiling Energy saving in retail & office To maximize visual comfort To create pleasant ambience Multiple choices for different interior applications To offer dynamic lighting for enhanced experience Smaller cut-out with higher lumen pack Energy efficiency Well-designed optics Superior light quality Great diversity to cater to different needs Smart lighting system compatibility – “Futureproof” 5” up to 2000lm Efficacy > 120lm/W UGR <=19, cut-off 38° 2 Beam Angles 36° & 60° SDCM < 5 , CRI 80 4 lumens x 4 CCTs PSU/PSD/DALI-VLC/ POE/ C4M/ Tunable white
[17:19, 4/3/2020] Mamta: Product Specifications DN590B M LED6 PSU DN590B M LED10 PSU DN590B M LED15 PSU DN590B M LED20 PSU Lumen (Typical) @865 750lm 1050lm 1500lm 2050lm Wattage (Typical) 6.2W 8.6W 12.3W 18W Efficacy @865 ~120lm/W SDCM ≤5 Life (L70B50) > 50,000 burning hrs. @Ta 450 C Operating Temperature -00 ~ +450 C Electrical Class Class II IP rating IP20 / IP54 (Front)* ROHS Compliant Yes CRI, R9 Ra≥80; R9≥0 Beam Angle 360 (MB), 600 (WB) CCT 3000/4000/5700/6500K Shielding Angle 38 ° Voltage 140V~270V Power Factor 0.9 THD <10% Driver Type Fix – Output / DALI / IA / POE / VLC-CL / TW* Cut-out Ø125 Front Ring & Housing material Pressure Die-cast Aluminum Mounting Type Recessed Serviceability Class-B, (Driver Replaceable) [17:20, 4/3/2020] Mamta: Product Nomenclature 1 Product Family Name Lux Space Pro 2 Manufacturing Country M - India Version 3 System Lumen Output 6S – 750 lumen 10S – 1000 lumen 15S – 1500 lumen 20S – 2000 lumen 4 Correlated Color Temperature 3000 - 3000K 4000 - 4000K 5700 - 5700K 6500 - 6500K Remarks • Some of the configurations are not standardized but available via ETO to reduce the complexity of standard scope • MB of BA 32~360 & WB of BA 60~650 is only available with faceted clear surface • Lumen package refers to the standardized models of 6500K CRI80 IP20 with clear surface, different CCT will have slightly different lumen output 5 Driver Options PSU – Fixed Output PSD – DALI CL – Coded Light POE – POE IA – Interact Pro (C4M) TW – Tunable White 6 Front rim color WH - White (RAL9016) 7 Beam option MB – Beam Angle 32~36° WB – Beam Angle 60~65°
